General information

Steintrikes are light, agile tricycles, with a unique modular design that allows a wide variety of combinations of front and rear sections - with or without suspension and with many different wheel sizes in front and rear.

The modular Steintrike design concept also makes it possible to split the trike into separate sections for transport so that it will fit into a very small carrier such as a large tennis bag.

An ergonomic meshback seat, with built in lumbar support and back rest angle adjustable between 30° and 45° comes standard. Fiberglass hardshell seats are also available. The glass fiber seat is approximately 1.5 pounds lighter and additionally reduces the turning circle of the Steintrike from about 14 feet to about 11 feet. Carbon fiber seats are also now available for even further weight reduction.

Mounting points for an optional rear disk brake and dynamo are standard.

Steintrikes can be reduced in size and folded flat for transport in a car in about 5 minutes through the following procedure:
The disk braked front wheels can be removed without having to touch the brake by unscrewing a bolt, removing the axle and dropping the front wheel straight down. The seat is laid back by loosening the high-grade steel clamps that hold it in place by one turn. Finally, the main bolt behind the seat is loosened by two turns, and the entire tail is rotated by 90° so that it lays flat.

The width and inclination of the handle bars is adjustable by means of a pair of clamps, and they can also be quickly folded flat for transport.

Each model is available as a complete trike or as a frameset.

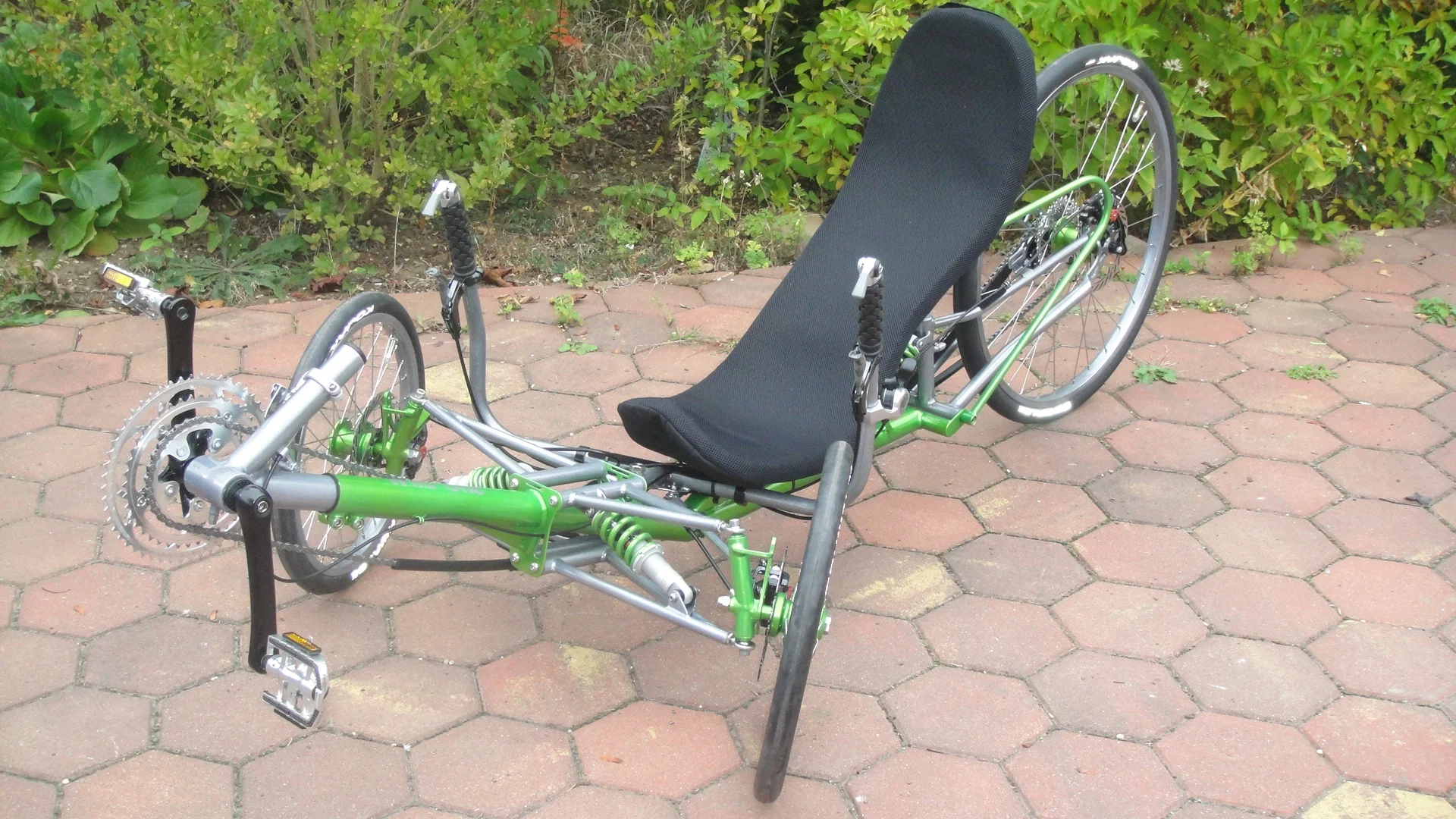

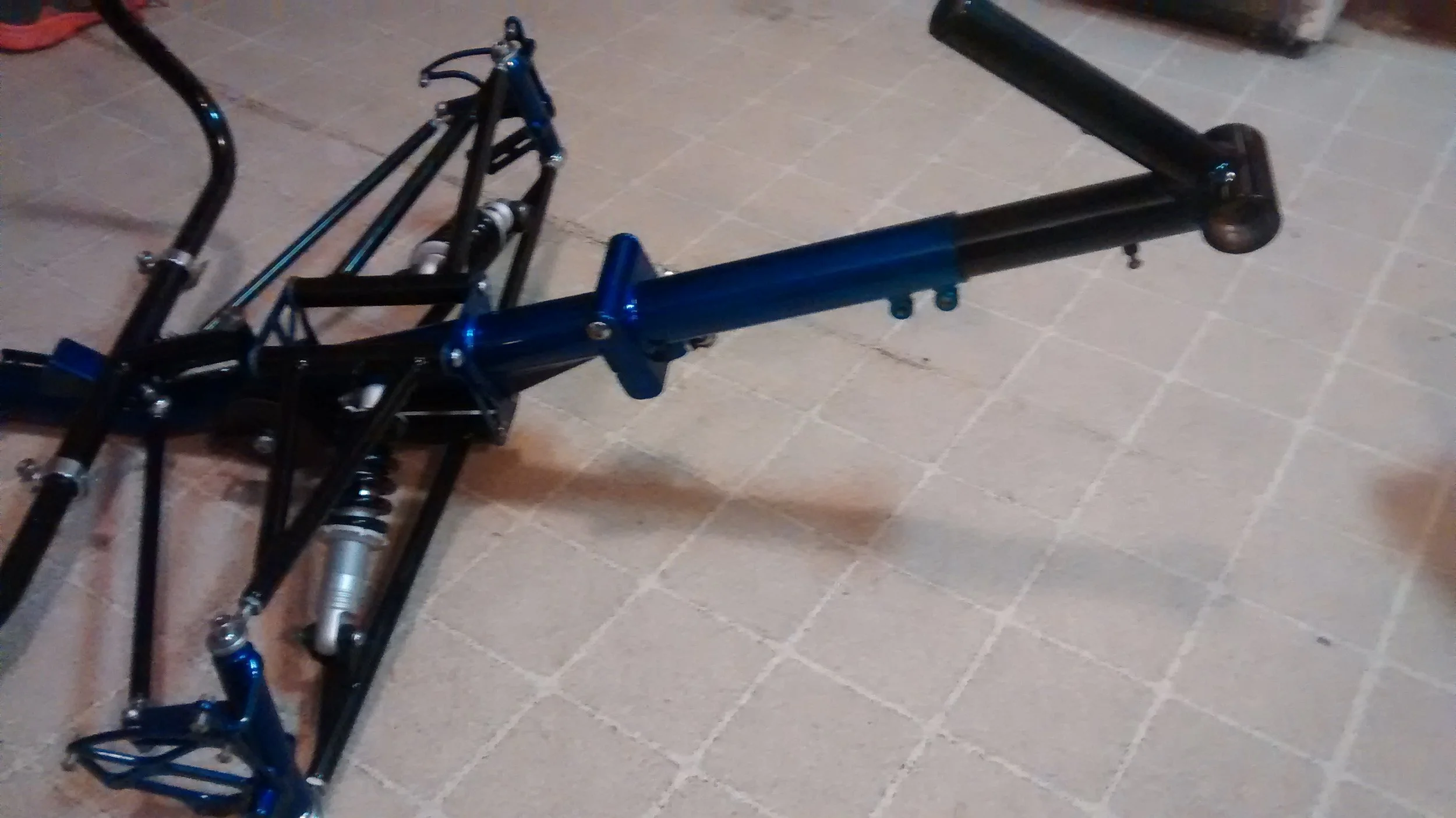

Wild One Fully Suspended Trike

Currently the best selling Steintrike model, the Wild One can be set up in a variety of wheel configurations: Your choice of 16" (349mm), 18" (355mm) or 20" (406mm) fronts, and either 20" or 26" (559mm) rear. Now also available with a 29" rear!

Two different fold options are available: the Fx folding front boom which allows the pedals to be folded over the seat, or a rear fold option (Note that the Quick Adjust Chainkit is not compatible with the Fx folding boom option).

Wild One Specs (specs vary slightly, depending on wheel and rider configuration)

  • 4.7 m turning circle, outside to outside (with 20" Wheels x3)
  • Available with16", 18", or 20" front wheels and with 20", 26" and now, 29" rear wheels
  • Track: 77 cm (approx 30")
  • Overall Width: 82 cm (approx. 32.25")
  • Wheel-base 107 cm (approx 42") which makes for a stable ride, especially at high speeds
  • Cargo Capacity; Lowrider Rack for two panniers, or Touring Rack (20" rear wheel only) for four panniers.
  • Ground clearance" approx. 120mm (4.7")
  • Suspension Travel, Front; 100mm (approx 4"), rear 80 mm (approx 3")
  • 17.9 kg (approx 39 lb) weight in the base configuration
  • Available with colormatched rims and hubs (upcharge applies after Feb 28, 2013)
  • multi-layer finish; one layer Anti-Corrosive CorroPrime Epoxy, two layers Hi-End Polyester Color, three layers Hi-Gloss Polyester Transparent Finish Coat.


    Wild One: Framesets - email for pricing
    Base model: $4195.00 - optional component upgrades upon request.
    (Please call or email - price may vary with exchange rate)


Mad Max Evo 4

Mad Max Evo 4 is the fourth generation of Steintrikes original fully suspended all purpose trike that has seen several improvements, including decreased weight and re-designed front swingarm and kingpin design. Each of the front two wheels are fitted with double wishbone supension . The frame structure of the front axle unit provides for maximum rigidity with the least amount of weight. The shock struts are installed between the wishbones which makes possible long spring travel and the possibility of tuning the firmness of the ride to your preference.

As is the case for all of the Steintrikes, every effort was made to keep the frontal area as small as possible so that the trike achieves as high a top speed as possible. With this in mind, the Mad Max uses the more aero 16 inch (349mm) front wheels, and a seat height of 10.5 inches (27 cm) while maintaining frame to ground clearance at nearly 6 inches (15 cm).

Mad Max Evo 4 Technical specs:



  • Frame material: ST 52 alloy steel
  • Wheels: 16 inch front (349 mm), 20 inch rear (406 mm)
  • Seat back angle adjustment range: 35° - 45°
  • Track width: 30"
  • Total width: 32.25 inches
  • Overall length: 1.89 m - 2.09 m
  • Seat height: 10.5" (27 cm)
  • Wheel base: 43" (1.09 m)
  • Turning circle: approx 13 ft (4.00 m)
  • Brake assembly: Disc brake AVID BB7
  • Spring travel: 70 mm on all three wheels
  • Gearing: Shimano or SRAM gripshift 24 spd.
  • Weight: approx 41.5 lbs





Mad Max: Framesets - email for pricing.
Base model: $4395.00 - optional component upgrades from Shimano Sora level upon request - please call or email for more information.
(Please call or email - price may vary with exchange rate)

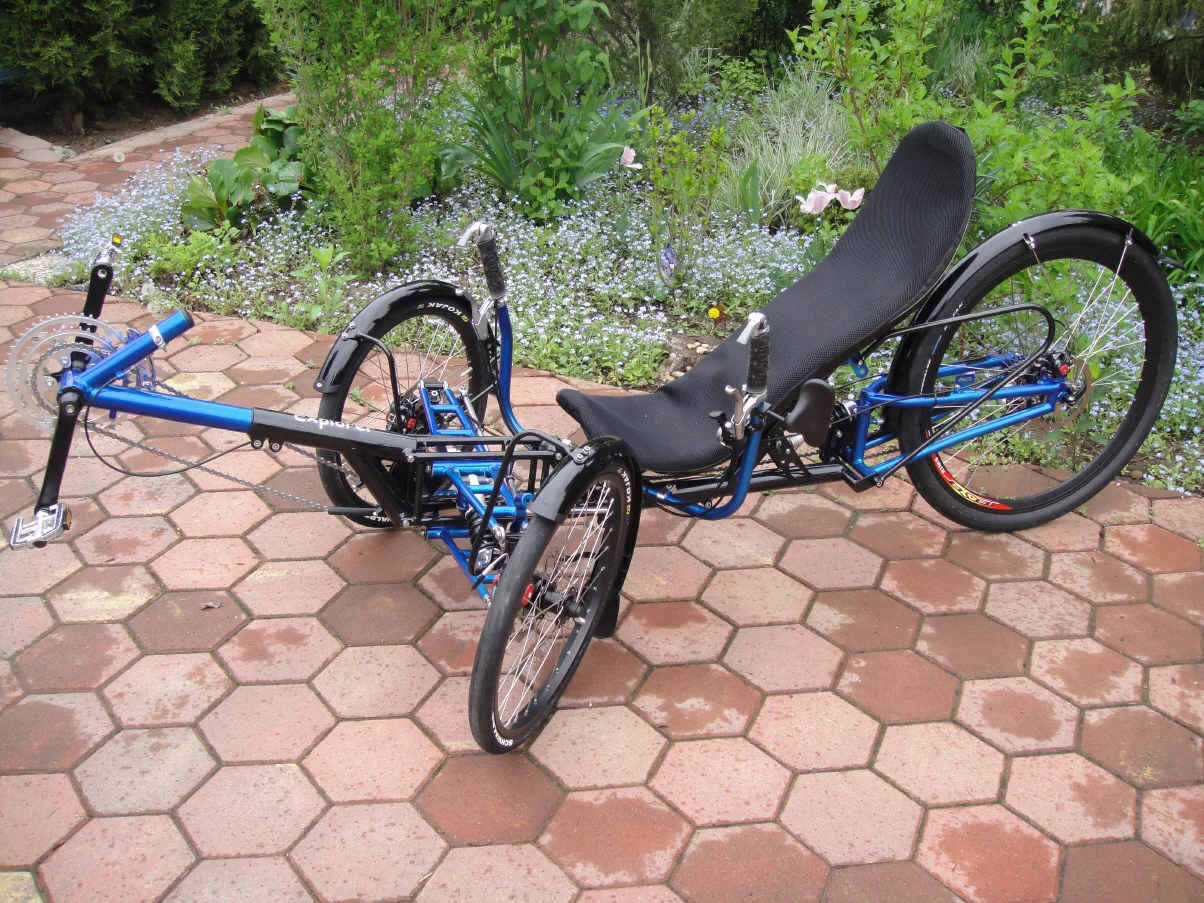

Meerkat Fully suspended trike

The Meerkat is a Steintrikes fully suspended all purpose trike based on the Mad Max which is available in three different versions:

Meerkat - All 3 wheels - 20" (406 mm)
Meerkat Sport - 18" front wheels, rear wheel 20 inches, standard length rear section
Meerkat Sport Speedline 18" front wheels (20" wheels upon request), rear wheel 20 inches Speedline rear (approx 2.5" shorter than standard length)

Meerkat Technical specs:



  • Frame material: ST 52 alloy steel
  • Wheels: front 18" (355 mm) or 20" (406mm), rear 20" (406 mm)
  • Seat angle: 35 ° - 45 °
  • Track width: 74 cm (29.1")
  • Overall width: 78 cm (30.7")
  • Overall length: 1.89 m - 2.09 m (74.4" - 82") -Depends on pedal boom position
  • Seat height: 28.5 cm (11.2")
  • Bottom bracket height: 47 cm (18.5")
  • Turning radius: Standard length - 3.35 m (11 feet)/ With speedline rear: 3.0 m (less than 10 feet)
  • Front suspension travel: 85 mm (3.3")
  • Rear suspension travel: 75 mm (3" )
  • Wheelbase: Standard length: 111 cm (43.7") With Speedline rear: 104.5 cm (41.1")
  • Brake system: Avid BB7 Disk brakes on front two wheels (rear disk parking brake available as optional upgrade)
  • Gearing: Shimano or SRAM gripshift 24 spd.



Meerkat Pricing: Framesets - email for pricing.
Base model: $4395.00 - optional component upgrades from base level upon request - please call or email for more information.
(Please call or email - price may vary with exchange rate)

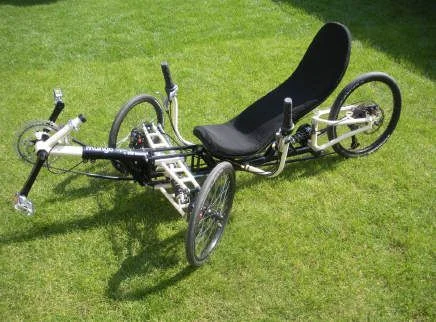

Explorer fully suspended trike with a 26 inch rear wheel

Steintrikes Explorer comes with 75 mm suspension travel on all three wheels, based on the Mungo and Mad Max proven concept with the low seat height of 28 cm, a narrow track width of 75 cm and an efficient bottom bracket height of 20-24 cm (above the seat), a small cross section and extremely good coasting that beats every unsuspended trike.

Even with narrow racing tires it is possible to negotiate small curbs at full speed. For luggage a light lowrider rack can be fitted, that can carry 2 big panniers of around 60 litres capacity. The luggage is, as on other Steintrikes, placed far forward so the trike can attain high speed in turns when fully loaded.

The Explorer also can be ordered in different configurations.
The rear wheel size is always 26 inches, with 3 front wheel variants: Explorer 16", 18" or 20" front wheels. The rear shock can be adjusted so the frames attitude and steering stays the same.

Technical specification:


  • Frame: ST 52
  • Wheels: front 16" (349mm), 18" (355mm) or 20" (406mm), rear 20" (406 mm)
  • Seat angle: 26° - 39°
  • Track width: 75 cm
  • Overall width: 78 cm
  • Overall length: 2,20 m
  • Seat height: 28 - 32 cm (depending on front wheels)
  • Wheel base: 1,14m
  • BB height: 48-53 cm
  • Turning circle: 3,35 m (out-out)
  • Brakes: Disc brakes AVID BB7 Derailer: Shimano 105 mit Shimano Gripshift
  • Weight: from 18,9 kg


Explorer Pricing: Framesets - email for pricing
Base model: $4395.00 - optional component upgrades from base level upon request - please call or email for more information.


Nomad

The Nomad has all the advantages of the rigid framed Roadshark and an additional excellent feature:  rear suspension.

With the rear suspended Nomad you can ride smoothly over the holes which horrified you before and not experience any of the power losses which may be introduced by some suspension systems.

A special luggage rack is available that takes advantage of the Nomad suspension to help cushion your payload from potholes and vibrations.

Nomad is available with mesh or fiberglass hardshell seat.

SPECS:

  • Frame material: Manessmann ST52BK seamless hard steel
  • Wheelbase: 1150 mm / 45.3"
  • Track: 680 mm / 26.8"
  • Total width: 760mm / 30"
  • Frame clearance: 130mm / 5.1"
  • Seat Angle: 30-45º from horizontal, adjustable
  • Seat Height: 10"
  • Steering system: Under seat, cross linked rods steering system
  • Front wheels size: 19-406 / 20"x1.75"
  • Rear wheel size: 19-406 / 20"x1.75"
  • Front hubs/brakes: BITEX alloy hub shells w/12mm bearings, Avid mechanical disc brakes
  • Leg length adjustment 254mm/10"
  • Advanced frame features: removable rear end and seat for easy storage or transport
  • Weight from 37.4 lbs (depending on equipment)
  • Base model comes equipped with Shimano Sora level components and grip shifters)





Nomad Framekit: email for pricing
Nomad Base Model from $3395
Optional component upgrades upon request - please call or email for more information.
(Call - price may vary with exchange rate)


Roadshark

With the large 26" drive wheel, Road Shark is a great solution for almost every type of use. Many prefer the larger drive wheel because it gives:

  • simple drivetrain solutions - less money to invest into special parts
  • great choice of rear tires starting with 25mm up to 54mm
  • feeling of increased visibility

Road Shark is available with mesh and/or Steintrikes GF or Carbon fiber hardshell seat.

SPECS:

  • Frame material: Manessmann ST52BK seamless hard steel
  • Wheelbase: 1150 mm / 45.3"
  • Track: 680 mm / 26.8"
  • Total width: 760mm / 30"
  • Frame clearance: 130mm / 5.1"
  • Seat Angle: 30-45º from horizontal, adjustable
  • Seat Height: 10"
  • Steering system: Under seat, cross linked rods steering system
  • Front wheels size: 19-406 / 20"x1.75"
  • Rear wheel size: 19-406 / 20"x1.75"
  • Front hubs/brakes: BITEX alloy hub shells w/12mm bearings, Avid mechanical disc brakes
  • Leg length adjustment 254mm (10")
  • Advanced frame features: removable rear end and seat for easy storage or transport
  • Weight: 35.2 lbs (depending on equipment)
  • Base model comes equipped with Shimano Sora level components and grip shifters)


Road Shark: Frameset - email for pricing
Base model: $2995
Optional component upgrades from Shimano Sora level upon request - please call or email for more information.
(Call - price may vary with exchange rate)


Accessories and Options

Upgrade to fiberglass hardshell seat with cushion upgrade: $285.00
Neckrest for hardshell seat: $99.00
Rear Rack - single, for two panniers, no load platform (for 20 or 26" rear wheel): $175.00
Rear Rack - Touring, for up to four panniers (for 20" rear wheel only) with load platform: $250.00
Rear Rack - lowrider, for two panniers, no load platform (for 26" rear wheel): $175.00
Wild One/Mad Max Evo 4 front Mudguard support brackets with mudguards: $210.00
Meerkat/Explorer front mudguard support brackets with mudguards: $ 180.00
Aero mudguards: $395.00
Rear fender, 20 or 26" wheel: $50.00
Easy Adjust Chain Regulator: $100.00
Computer/GPS mount: $29.00
BionX Battery Mount: $90.00
Chain Ring guard: $110.00


Dealers

If there is a dealer in your area, we will refer you to them for test rides, ordering, etc., however, if no Steintrikes dealer exists in your area, we are happy to ship your order to you.

Please check below for a dealer near you:

AZ:

AM Velo, LLC
321 E. Grant Rd., Ste 1
Tucson, AZ 85705
520-328-7624

IN:

Victory Cycles
301 E. Morgan St.
Kokomo, IN 46901
www.victorytrikeshop.com
(765) 452-9717

ME:

Wildfire HPV, LLC
281 Mountain Rd.
Arundel, ME
www.wildfirehpv.com
(207)423-7360

OR:

Recumbent PDX
2025 SE Hawthorne Blvd
Portland, OR 97214
www.recumbentpdx.com
(503) 231-1000


Ordering

To order, please contact your local Steintrikes dealer. If no local dealer is available, please contact Steintrikes NA to order directly.

To ensure the best fit possible several measurements must be provided: We will need your height, x-seam measurement, and weight. To obtain your X-seam measurement, sit with your back to a wall. Position yourself so that the small of your back is all the way against the wall and your shoe soles are perpendicular to the ground. If that is too uncomfortable, place a book or two behind you. Then measure from the wall (or book) to the sole of your shoes.

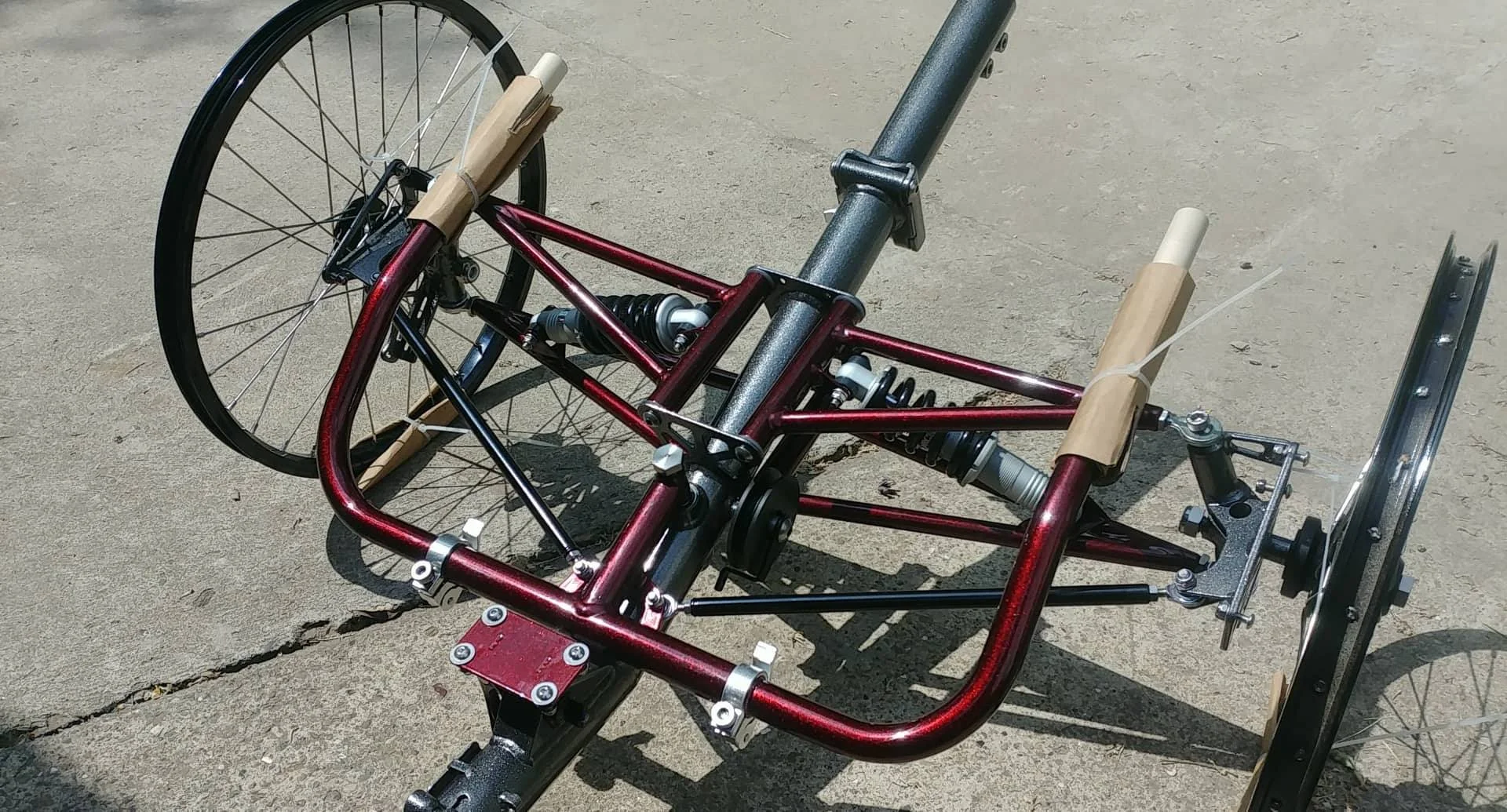

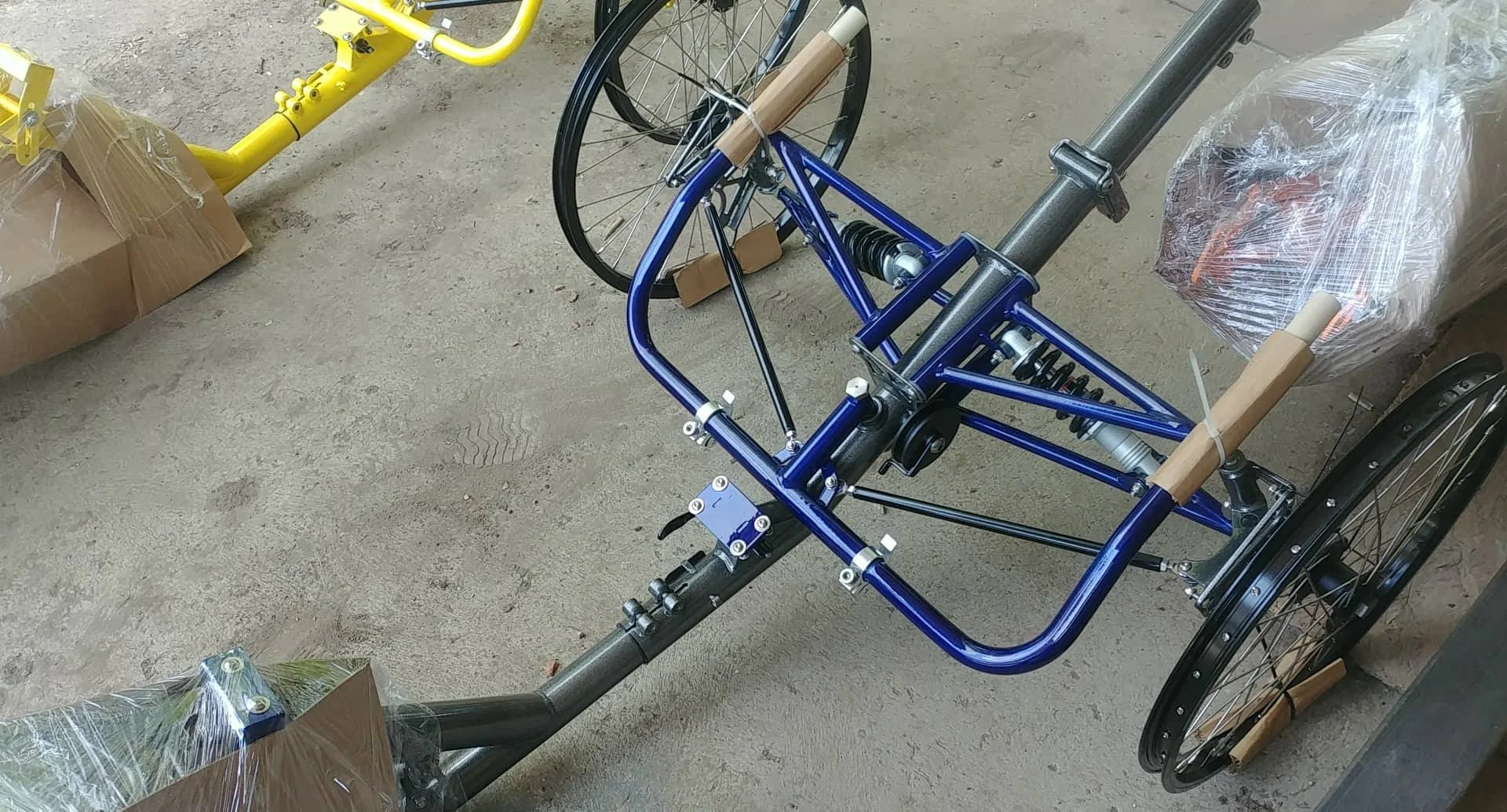

Stock colors are Dormant (metallic) Red or Dormant Blue with gloss black swingarms. Custom paint is available upon request. Please note that custom orders may take up to 12 weeks for delivery.

On custom orders,  A 2/3 deposit is required with the order, with balance due when Steintrikes is ready to ship.
Deposits become non-refundable once Steintrikes begins work on the order.

All prices subject to change without notice.


Framesets

Each model is available as a complete trike or as a frameset.

Framesets include the following:



  • main frame (cross section) with sleeves, two bottle cage mounts etc.
  • rear stay (DNM DV22 suspension included with Nomad model)
  • front extension with bottom bracket shell and front derailler post.
  • kingpin assembly components (headsets, kingpin axles, wheel axles)
  • adjustable handlebar + bushings and clamps
  • seat w/cover and mounting hardware
  • chain management (pulleys w/bearings & bolts, nuts)
  • front wheels
  • rear wheel with 8/9speed cassette hub (QR)
  • Aluminum steering rods with rod ends.
